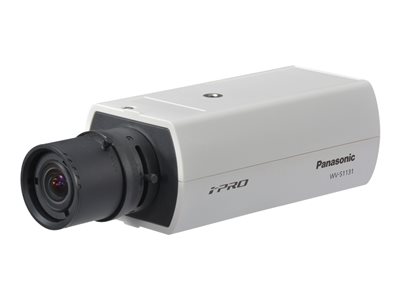

Panasonic i-Pro Extreme WV-S1111 - network surveillance camera (no lens) - WV-S1111

The Panasonic WV-S1111 captures the highest quality images automatically even in very challenging and fast-changing surveillance environments. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. The industry-leading 144dB dynamic range delivers balanced scene exposure in dynamic and extreme-backlit lighting environments. In addition, color night vision provides outstanding low-light performance with accurate color rendition and saturation.

Panasonic i-Pro Extreme WV-S1111 - Network surveillance camera (no lens) - color (Day&Night) - 1.3 MP - 1280 x 960 - 720/60p - audio - composite - LAN 10/100 - H.264, H.265 - DC 12 V / PoE Class 2

General

Device Type:

Network surveillance camera (no lens)

Audio Support:

Yes: two-way audio capability

Connectivity Technology:

Wired

Width:

3 in

Depth:

5.7 in

Height:

2.2 in

Weight:

12.34 oz

Camera

Type:

Color - Day&Night - fixed

Video Format:

NTSC, PAL

Digital Video Format:

H.264, H.265

Max Digital Video Resolution:

1280 x 960

Motion Detection:

Video Modes:

720/60p

Exposure Range:

1/30 sec - 1/10000 sec

Minimum Illumination:

0.007 lux - color - F1.4 - shutter 1/30 sec / AGC on
0.003 lux - B&W - F1.4 - shutter 1/30 sec / AGC on
0.0005 lux - color - F1.4 - shutter 16/30 sec
0.0002 lux - B&W - F1.4 - shutter 16/30 sec

Video Capture:

1280 x 720 @ 30 fps
1280 x 720 @ 60 fps
640 x 360 @ 30 fps
640 x 360 @ 60 fps
320 x 180 @ 30 fps
320 x 180 @ 60 fps
1280 x 960 @ 30 fps

Supported Image Formats:

JPEG

Features:

Backlight Compensation (BLC), digital noise reduction, image stabilizer, Adaptive Black Stretch (ABS), Intelligent Auto (iA), Super Dynamic technology, Highlight Compensation (HLC), Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Privacy Zone, fog compensation, Multicast Streaming, Smart Coding Technology, Smart Facial Coding

Image Sensor

Type:

1.3 MP MOS 1/2.8"

Lens Construction

Focus Adjustment:

Automatic, manual

Interfaces

Video:

Composite video

Network Interface:

Ethernet 10Base-T/100Base-TX

Network Protocols:

DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, MLD

Alarm Inputs Qty:

Alarm Outputs Qty:

Expansion / Connectivity

Ports:

LAN/power - RJ-45
Composite video
Audio line-in/microphone - 3.5 mm mono jack
Audio line out - 3.5 mm stereo jack

Supported Memory Cards:

SD Memory Card, SDXC Memory Card, SDHC Memory Card

Miscellaneous

Compliant Standards:

FIPS 140-2 Level 1

Color:

Sail white

Power

Power Requirements:

DC 12 V / PoE Class 2

Power Device:

5.8 Watt

Software / System Requirements

OS Required:

Android, Apple iOS

Environmental Parameters

Min Operating Temperature:

14 °F

Max Operating Temperature:

122 °F

Relative Humidity (operating):

10 - 90% (non-condensing)

Intelligent auto mode
Continuously monitors scene dynamics and motion to automatically adjust key camera settings in real-time, optimizing captured images and reducing distortion such as motion blur on moving objects.
144dB enhanced super dynamic range
The industry-leading 144dB dynamic range performance delivers balanced scene exposure in highly dynamic and extreme-backlit lighting environments.
Color night vision
Delivers outstanding low-light performance with accurate color rendition and saturation.
