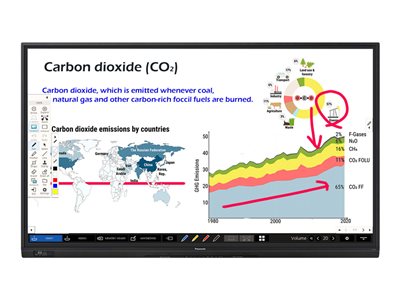

Panasonic TH-75BQ1W - 75" Diagonal Class (74.6" viewable) LED-backlit LCD display - interactive - with touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - dynamic backlight, Direct LED
Price:
$12,04999
Availability:
Call for availability - (888) 912-3151 or E-Mail
Brand:
Panasonic
MPN:
TH-75BQ1W
Condition:
new
Returnable:
Yes
UPC:
885170427143
This product is on backorder. Compare similar products?
This large, 75" class, 4K professional touch screen display equipped with advanced features offers a slim, lightweight, and scalable solution which simplifies any installations.
Panasonic TH-75BQ1W - 75" Diagonal Class (74.6" viewable) LED-backlit LCD display - interactive - with touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - dynamic backlight, Direct LED
General
Product Type:
- LED-backlit LCD flat panel display
Power Consumption (Max):
- 363 Watt
Power Consumption Operational:
- 278 Watt
Diagonal Class:
- 75"
Diagonal Size:
- 74.6"
Commercial Use:
- Yes - interactive
Combined With:
- Touchscreen (multi touch)
TV Tuner:
- No tuner
TV Tuner Presence:
- No
Video Interface:
- HDMI
HDMI Ports Qty:
- 3 ports
PC Interface:
- DVI, VGA (HD-15), DisplayPort
Modes:
- Portrait mode, landscape mode
Picture Enhancements:
- Dynamic contrast, Color Enhancement, dynamic backlight control, Refine Enhancer, Gradation Smoother
Protection:
- Protection glass
Dimensions:
- Without handles
Width:
- 67.6 in
Depth:
- 3.2 in
Height:
- 40.6 in
Weight:
- 124.78 lbs
Display
LCD Display Technology:
- IPS
Resolution:
- 3840 x 2160
Display Format:
- 4K UHD (2160p)
Image Aspect Ratio:
- 16:9
LCD Backlight Technology:
- Dynamic backlight, Direct LED
Coating:
- Anti-glare
Image Contrast Ratio:
- 1200:1
Dynamic Contrast Ratio:
- 50000:1
Brightness:
- 500 cd/m²
Viewing Angle:
- 178°
Viewing Angle (Vertical):
- 178°
Touchpoints Qty:
- 20
Response Time:
- 8 ms
Commercial Features:
- Button lock, Crestron Connected Certified, FailOver
Settings Cloning Capability:
- Yes
Additional Features:
- AMX Device Discovery, screen saver, PJLink
Stands & Mounts
Stand:
- Optional
Flat Panel Mount Interface:
- 600 x 400 mm
VESA Compatibility:
- Yes
Media Player
USB Port:
- Yes
USB Ports Qty:
- 4
Remote Control
Type:
- Remote control
Battery Form Factor:
- AAA type
Battery Required Qty:
- 2
Audio System
Speaker System:
- 2 speakers
Output Power / Total:
- 20 Watt
Speakers:
- 2 x speaker - 10 Watt
Network & Internet Multimedia
Functionality:
- WEB browsing, Internet video playback
Connectivity:
- LAN
LAN Protocol:
- Gigabit Ethernet
Connections
Connector Type:
- 2 x HDMI input - rear
- HDMI input - front
- DisplayPort input
- DVI-D input
- VGA input
- RS-232C input
- Audio line-out
- LAN
- USB 3.0 - rear
- 2 x USB 2.0 - front
- Touch
Miscellaneous
Included Accessories:
- Eraser, 3 clampers, 2 pens, 2 corner pads
Cables Included:
- USB cable
Compliant Standards:
- FCC CFR47, FCC Part 15 B Class A, HDCP 2.2, ANSI C63.4-2014, CAN/CSA-C22.2 No. 62368-1-14, ANSI / UL62368-1:2014, ICES-003 issue 6:2016, Color Universal Design (CUD)
Power
Power Device:
- Power supply
Input Voltage:
- AC 120/230 V (50/60 Hz)
Power Consumption Stand by:
- 0.5 Watt
Power Consumption (Off Mode):
- 0.3 Watt
Dimensions & Weight Details
Dimensions & Weight Details:
- Panel without handles - 67.6 in x 3.2 in x 40.6 in x 124.8 lbs
- Panel with handles - 67.6 in x 4.2 in x 40.6 in
Dimensions & Weight (Shipping)
Width (Shipping):
- 74.8 in
Depth (Shipping):
- 11 in
Height (Shipping):
- 48.5 in
Weight (Shipping):
- 154.32 lbs
Environmental Parameters
Min Operating Temperature:
- 32 °F
Max Operating Temperature:
- 104 °F
Humidity Range Operating:
- 20 - 80% (non-condensing)
