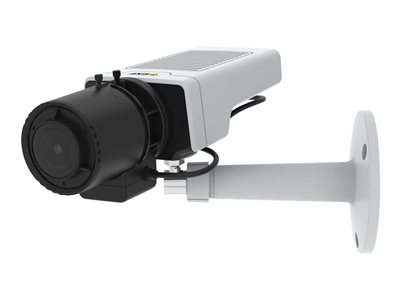

AXIS M1137 MK II - Network surveillance camera - box - color (Day&Night) - 5 MP - 2592 x 1944 - i-CS-mount - auto iris - vari-focal - audio - LAN 10/100 - H.264B, H.264M, H.264H, H.265, MJPEG - DC 10 - 28 V / PoE Class 3

Price:

For pricing or to order this product:

Call our Sales Representatives

Mon-Fri 8am-6:30pm CST

E-Mail

Answer within 2 hours

Availability:

Call for availability - (888) 912-3151 or E-Mail

Brand:

Axis Communications

MPN:

02581-001

Condition:

new

Returnable:

Yes

This product is on backorder. Compare similar products?

Extended Warranty:

Add to Compare

This affordable and compact box camera delivers 5 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent, it helps discourage trespassing and other unwanted activities.

AXIS M1137 MK II - Network surveillance camera - box - color (Day&Night) - 5 MP - 2592 x 1944 - i-CS-mount - auto iris - vari-focal - audio - LAN 10/100 - H.264B, H.264M, H.264H, H.265, MJPEG - DC 10 - 28 V / PoE Class 3

General

Device Type:

Network surveillance camera

Audio Support:

Yes: two-way audio via edge-to-edge technology, built-in microphone

Audio Formats:

LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS

Form Factor:

Camera Mount Type:

Wall mount, ceiling mount

Connectivity Technology:

Wired

Width:

2.5 in

Depth:

2.8 in

Height:

5.9 in

Weight:

8.46 oz

Localization:

Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States

Camera

Type:

Color - Day&Night - fixed

Digital Video Format:

H.264B, H.264M, H.264H, H.265, MJPEG

Max Digital Video Resolution:

2592 x 1944

Motion Detection:

Exposure Range:

1/5 sec - 1/33500 sec

Minimum Illumination:

0.17 lux - color - F1.4 - 50 IRE
0.03 lux - B&W - F1.4 - 50 IRE

Digital Video Capture Resolution:

2592 x 1944, 160 x 120

Frame Rate (max):

30 frames per second

RAM:

1 GB

Flash Memory:

512 MB

Features:

IR Corrected lens, remote zoom, remote focus, infrared-cut filter, Forensic WDR, Lightfinder technology, Machine learning processing unit (MLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), low latency mode, auto gain control, aspect ratio correction, fine tuning of behavior at low light, barrel distortion correction, text overlay, image overlay, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, digital PTZ function, network speaker pairing, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Audio Detection, Pixel Counter Support, active tampering alarm, signed firmware, brute force delay protection, digest authentication, password protection, memory card encryption, secure boot, Axis Edge Vault, Axis device ID, signed video, IP address filtering

Image Sensor

Type:

5 MP PS RGB CMOS 1/2.7"

Lens Construction

Type:

I-CS-mount - vari-focal

Optical Zoom:

2.9 x

Focal Length:

3.5 mm - 10 mm

Lens Iris:

F/1.4 auto iris (P-Iris)

Min Focus Distance:

2.6 ft

Horizontal Field of View (degree):

31 - 99

Vertical Field of View (degree):

24 - 71

Interfaces

Network Interface:

Ethernet 10Base-T/100Base-TX

Network Protocols:

IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf

Expansion / Connectivity

Ports:

LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack

Supported Memory Cards:

microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories:

AXIS T91A11 stand (white)

Compliant Standards:

EAL 4+, IEEE 802.1x, IEEE 802.1ar, X.509, PVC-free, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 62368-1, EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267

Color:

White, black, NCS S 1002-B, NCS S 9000-N

Power

Power Requirements:

DC 10 - 28 V / PoE Class 3

Software / System Requirements

Software Included:

AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license

Manufacturer Warranty

Service & Support:

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature:

-4 °F

Max Operating Temperature:

122 °F

Relative Humidity (operating):

10 - 85% RH (non-condensing)

More bang for your buck
This affordable Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS object analytics preinstalled, so you can detect and classify humans and vehicles.
Great image quality even in low light
With 5 MP resolution at up to 30 fps, AXIS M1137 Mk II delivers superb video quality even in low light conditions. Featuring Axis lightfinder it offers images in true colors even in low light. And, with Axis forensic WDR you get clarity even when there's both dark and light areas in the scene.
Designed for deterrence
Designed to act as a deterrent, AXIS M1137 Mk II lets potential offenders know you're watching and helps prevent unwanted activities. This compact box camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis ceiling speaker.
