Electronics > Networking > Network Security > Network Security Appliances

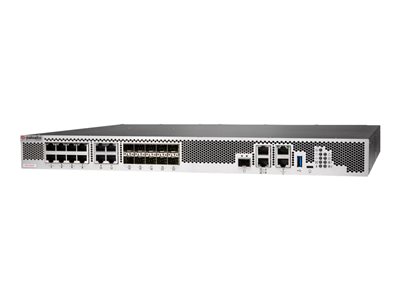

Palo Alto Networks PA-1420 (Voltage: AC 100-240 V (50/60 Hz)) main image

Roll over main image to zoom in. Click to open expanded view.

Palo Alto Networks PA-1420 (Voltage: AC 100-240 V (50/60 Hz)) - Image 1: Main

Palo Alto Networks PA-1420 - Security appliance - on-site spare - 2.5GbE, 5GbE, 10GbE - front to back airflow - 1U - rack-mountable (Voltage: AC 100-240 V (50/60 Hz))

Price:

For pricing or to order this product:

Call our Sales Representatives

Mon-Fri 8am-6:30pm CST

E-Mail

Answer within 2 hours

Availability:

10-14+ Days
This item will be shipped directly from the manufacturer.
Leadtime to shipment will be a minimum of 10-14 working days.
Call for further shipping details. - (888) 912-3151 or E-Mail

Brand:

Palo Alto Networks

MPN:

PAN-PA-1420-OSS

Condition:

new

Returnable:

Yes

Add to Compare

Palo Alto Networks PA-1400 series ML-Powered Next-Generation Firewalls, comprising the PA-1420, is designed to provide secure connectivity for organizations' branch offices as well as midsize businesses.The controlling element of the PA-1400 series is PANOS, the same software that runs all Palo Alto Networks NGFWs. PAN-OS natively classifies all traffic, inclusive of applications, threats, and content, and then ties that traffic to the user regardless of location or device type. The application, content, and user - in other words, the elements that run your business - then serve as the basis of your security policies, resulting in improved security posture and reduced incident response time.

Palo Alto Networks PA-1420 - Security appliance - on-site spare - 2.5GbE, 5GbE, 10GbE - front to back airflow - 1U - rack-mountable (Voltage: AC 100-240 V (50/60 Hz))

General

Device Type:

Security appliance

Height (Rack Units):

Width:

17.2 in

Depth:

14.1 in

Height:

1.7 in

Weight:

15.5 lbs

Processor / Memory / Storage

Hard Drive:

SSD 240 GB x 1

Networking

Form Factor:

Rack-mountable

Airflow Direction:

Front to back airflow

Connectivity Technology:

Wired

Data Link Protocol:

Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet

Network / Transport Protocol:

IPv6, PPPoE, HTTP, DNS, IPSec, DHCP, IPv4

Routing Protocol:

OSPFv2, OSPFv3, BGP, RIP, static IP routing, policy-based routing (PBR), PIM-SM, PIM-SSM, IGMP, IGMPv2, IGMPv3

Performance:

Firewall throughput (HTTP): 9.9 Gbps
Firewall throughput (appmix): 9.5 Gbps
Threat prevention throughput (HTTP): 5 Gbps
Threat prevention throughput (appmix): 4.8 Gbps
VPN throughput (IPSec): 6.5 Gbps

Capacity:

Maximum number of sessions: 1400000
New sessions per second: 140000
VLAN tags per device: 4094
VLAN tags per interface: 4094
Virtual systems (base): 1
Virtual systems (maximum): 6

Features:

SD-WAN support, web threat protection, jitter/ loss/ latency measurement, Path Selection, Stateless Address Autoconfiguration (SLAAC), Pre-Shared Key (PSK), VLAN support, NAT support, High Availability, 151W PoE power budget, PoE up to 90 watts per port, IPv6 support, machine learning, multi-factor authentication (MFA), HTTP/2 support, URL filtering, Data Loss Prevention (DLP)

Encryption Algorithm:

SSL, IKEv1, IKEv2, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, 256-bit SHA, 384-bit SHA, 512-bit SHA, TLS 1.3

Compliant Standards:

IEEE 802.1Q, IEEE 802.3ad (LACP)

Expansion / Connectivity

Interfaces:

4 x 1000Base-T - RJ-45
4 x 1/2.5/5GBase-T - RJ-45
4 x 1/2.5/5GBase-T (PoE) - RJ-45
2 x Ethernet 1000 - SFP
8 x 1Gb Ethernet/10Gb Ethernet - SFP/SFP+
1 x 1000Base-T (management) - RJ-45
1 x 10Gb Ethernet (HA)
1 x console - RJ-45
1 x USB
1 x console - micro-USB

Miscellaneous

MTBF:

24 years

Compliant Standards:

cTUVus, CB, FCC Class A certified, VCCI Class A

Power

Power Over Ethernet (PoE) Supported:

Power Device:

Internal power supply

Installed Qty:

Max Supported Qty:

Power Redundancy:

Optional

Voltage Required:

AC 100-240 V (50/60 Hz)

Power Consumption Operational:

260 Watt

Power Provided:

450 Watt

Manufacturer Warranty

Service & Support:

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature:

32 °F

Max Operating Temperature:

104 °F

ML-Powered Next-Generation Firewall
Embeds machine learning (ML) in the core of the firewall to provide inline signatureless attack prevention for file-based attacks while identifying and immediately stopping never-before-seen phishing attempts. Leverages cloud-based ML processes to push zero-delay signatures and instructions back to the NGFW. Uses behavioral analysis to detect Internet of Things (IoT) devices and make policy recommendations; cloud-delivered and natively integrated service on the NGFW. Automates policy recommendations that save time and reduce the chance of human error.
Identifies and categorizes all applications, on all ports, all the time, with full layer 7 inspection
Identifies the applications traversing your network, irrespective of port, protocol, evasive techniques, or encryption (TLS/SSL). Automatically discovers and controls applications to keep pace with the SaaS explosion with SaaS Security subscription. Uses the application, not the port, as the basis for all your safe enablement policy decisions: allow, deny, schedule, inspect, and apply traffic-shaping. Offers the ability to create custom App-ID tags for proprietary applications or request App-ID development for applications from Palo Alto Networks. Identifies all payload data within the application to block malicious files and thwart data exfiltration attempts. Creates standard and customized application usage reports, including Software-as-a-Service (SaaS) reports, that provide insight into all sanctioned and unsanctioned SaaS traffic on your network. Enables safe migration of legacy Layer 4 rule sets to App-ID-based rules with built-in Policy Optimizer, giving you a rule set that is more secure and easier to manage.
Enforces security for users at any location, on any device, while adapting policy based on user activity
Enables visibility, security policies, reporting, and forensics based on users and groups - not just IP addresses. Easily integrates with a wide range of repositories to leverage user information: wireless LAN controllers, VPNs, directory servers, SIEMs, proxies, and more. Allows you to define Dynamic User Groups (DUGs) on the firewall to take time-bound security actions without waiting for changes to be applied to user directories. Applies consistent policies irrespective of users' locations and devices. Prevents corporate credentials from leaking to third-party websites and prevents reuse of stolen credentials by enabling multifactor authentication (MFA) at the network layer for any application without any application changes. Provides dynamic security actions based on user behavior to restrict suspicious or malicious users.
Prevents malicious activity concealed in encrypted traffic
Inspects and applies policy to TLS/SSL-encrypted traffic, both inbound and outbound, including for traffic that uses TLS 1.3 and HTTP/2. Offers rich visibility into TLS traffic, such as amount of encrypted traffic, TLS/SSL versions, cipher suites, and more, without decrypting. Enables control over use of legacy TLS protocols, insecure ciphers, and misconfigured certificates to mitigate risks. Facilitates easy deployment of decryption and lets you use built-in logs to troubleshoot issues, such as applications with pinned certificates. Let's you enable or disable decryption flexibly based on URL category, source and destination zone, address, user, user group, device, and port, for privacy and regulatory compliance purposes. Allows you to create a copy of decrypted traffic from the firewall and send it to traffic collection tools for forensics, historical purposes, or data loss prevention (DLP). Allows you to intelligently forward all traffic to third-party security tools with Network Packet Broker, optimize your network performance, and reduce operating expenses.
Offers centralized management and visibility
Benefits from centralized management, configuration, and visibility for multiple distributed Palo Alto Networks NGFWs (irrespective of location or scale) through Panorama network security management, in one unified user interface. Streamlines configuration sharing through Panorama with templates and device groups, and scales log collection as logging needs increase. Enables users, through the Application Command Center (ACC), to obtain deep visibility and comprehensive insights into network traffic and threats.
Maximize Your security investment and prevent business disruption with AIOps
Delivers continuous best practice recommendations customized to your unique deployment to strengthen your security posture and get the most out of your security investment. Intelligently predicts firewall health, performance, and capacity problems based on ML powered by advanced telemetry data. Provides actionable insights to resolve the predicted disruptions.
Native web proxy support for the Next-Generation Firewall
Ability to consolidate firewall and proxy into a single platform while managing capabilities through a centralized management platform to build policies. Ability to support explicit proxy through PAC files and also transparent proxy. Explicit proxy can help with no-default route architectures with on-premises proxy deployments.
Explicit proxy supports authentication with Kerberos and SAML.
Transparent proxy setup is simplified without the need for WCCP or authentication. Detects and Prevents Advanced Threats with Cloud-Delivered Security Services Today's sophisticated cyberattacks can spawn 45,000 variants in 30 minutes using multiple threat vectors and advanced techniques to deliver malicious payloads.
Delivers a unique approach to packet processing with single-pass architecture
Performs networking, policy lookup, application and decoding, and signature matching - for all threats and content in a single pass; significantly reduces the amount of processing overhead required to perform multiple functions in one security device. Avoids introducing latency by scanning traffic for all signatures in a single pass using stream-based, uniform signature matching. Enables consistent and predictable performance when security subscriptions are enabled.
Enables SD-WAN functionality
Allows you to easily adopt SD-WAN by simply enabling it on your existing firewalls. Enables you to safely implement SD-WAN, which is natively integrated with the industry-leading security. Delivers an exceptional end-user experience by minimizing latency, jitter, and packet loss.
