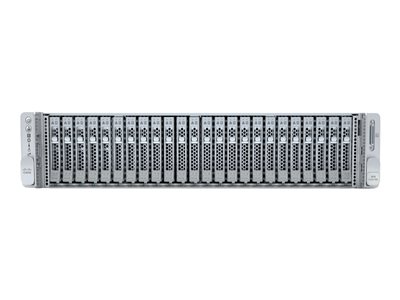

Cisco Compute Hyperconverged with Nutanix C240 M6 All Flash main image

Roll over main image to zoom in. Click to open expanded view.

Cisco Compute Hyperconverged with Nutanix C240 M6 All Flash - Image 1: Main

Cisco Compute Hyperconverged with Nutanix C240 M6 All Flash - Server - rack-mountable 2U - 2-way - no CPU - RAM 0 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - G200e - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none

Price:

$3,445⁹⁹

Was $7,582⁰¹ Save 55%

Availability:

10-14+ Days
This item will be shipped directly from the manufacturer.
Leadtime to shipment will be a minimum of 10-14 working days.
Call for further shipping details. - (888) 912-3151 or E-Mail

Brand:

Cisco

MPN:

HCIAF240C-M6SX

Condition:

new

Returnable:

Yes See return policy.

Add to Compare

Cisco Compute Hyperconverged with Nutanix accelerates and simplifies the delivery of infrastructure and applications, at a global scale, through excellent cloud-operating models, great flexibility, and enhanced support and resiliency capabilities so you can power your hybrid multicloud future with a complete hyperconverged solution.Cisco Compute Hyperconverged C240 M6 Node family delivers performance, flexibility, and resiliency in a high-capacity solution. Physically, nodes are deployed into clusters, with a cluster consisting of three or more Cisco Compute Hyperconverged C240 M6 all-flash nodes. These are integrated into a single system by a pair of Cisco UCS 6400 Series Fabric Interconnects, creating clusters that support general-purpose deployments and mission-critical high-performance environments.

Cisco Compute Hyperconverged with Nutanix C240 M6 All Flash - Server - rack-mountable 2U - 2-way - no CPU - RAM 0 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - G200e - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none

General

Type:

Server

Product Form Factor:

Rack-mountable - 2U

Built-in Devices:

Status LED, 6 x hot-swap fans

Server Scalability:

2-way

Front Accessible Bays Qty:

Hot-Swap Bays Qty:

Processor / Chipset

CPU:

No CPU

Max CPU Qty:

CPU Upgradability:

Upgradable

Chipset Type:

Intel C621A

RAM

Installed Size:

0 GB (installed) / 8 TB (max)

Form Factor:

DIMM 288-pin

Slots:

32 (total) / 32 (empty)

Hard Drive

Type:

No HDD

Optical Storage

Type:

No optical drive

Monitor

Monitor Type:

None.

Graphics Controller

Graphics Processor:

Matrox G200e

Video Memory:

8 MB

Video Interfaces:

Networking

Ethernet Ports:

2 x 10 Gigabit Ethernet

Data Link Protocol:

Gigabit Ethernet, 10 Gigabit Ethernet

Remote Management Controller:

Cisco Integrated Management Controller, Intel Baseboard Management Controller (BMC)

Expansion / Connectivity

Bays:

24 (total) / 24 (free) x hot-swap 2.5" SFF

Slots:

3 (total) / 3 (free) x expansion slot (riser card only)
1 (total) / 1 (free) x mLOM
2 (total) / 2 (free) x M.2 Card

Interfaces:

2 x LAN (10Gigabit Ethernet) - RJ-45 (2 rear)
1 x management (Gigabit Ethernet) - RJ-45 (1 rear)
1 x serial - RJ-45 (1 rear)
2 x USB 3.0 (2 rear)
1 x KVM (1 in front)
1 x VGA - DB-15 (1 rear)

Miscellaneous

Included Accessories:

32 x DIMM blanks, 28 x SFF drive blanking panel, riser blanking panel, 2 x power supply blanking panel, M.2 Extender board

Cables Included:

SAS cable (2 pcs.)

Compliant Standards:

ACPI 6.2, Directive 2014/30/EU, Directive 2014/35/EU, UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB 4943-2001, FCC CFR47 Part 15 A, AS/NZS CISPR 32 Class A, CISPR 32 Class A, EN 55032 Class A, ICES-003 Class A, VCCI Class A, EN 61000-3-2, EN 61000-3-3, KN32 Class A, CNS 13438 Class A, EN55024, CISPR 24, EN 300 386, KN35

Power

Device Type:

Power supply - hot-plug

Power Redundancy:

Optional

Power Redundancy Scheme:

Installed Qty:

Max Supported Qty:

Manufacturer Warranty

Service & Support:

Limited warranty - advance hardware replacement - 3 years - response time: next business day

Dimensions & Weight

Width:

16.9 in

Depth:

30 in

Height:

3.4 in

Environmental Parameters

Min Operating Temperature:

50 °F

Max Operating Temperature:

95 °F

Humidity Range Operating:

10 - 90% RH (non-condensing)

Sound Emission:

40 dBA

Efficient cooling system
Equipped with 6 hot-swap fans, this server ensures optimal performance by maintaining a cool environment for the hardware components, even under heavy workloads.
Flexible storage options
With 24 front accessible hot-swap bays supporting 2.5" SATA/SAS drives, the server offers ample storage flexibility, allowing for easy upgrades and replacements to meet evolving data demands.
Robust connectivity
Featuring 2 rear 10 Gigabit Ethernet ports, 1 management and 1 serial port, along with USB 3.0 and VGA connections, this server provides a wide range of connectivity options for various networking and peripheral requirements.
Advanced manageability
Incorporating both Cisco Integrated Management Controller and Intel Baseboard Management Controller, the server offers comprehensive remote management capabilities, simplifying server administration tasks.
Scalable performance
With support for up to 2 CPUs, 32 DIMM slots for RAM expansion, and dual power supply units for redundancy, the server is designed to scale performance and reliability to meet future growth.
