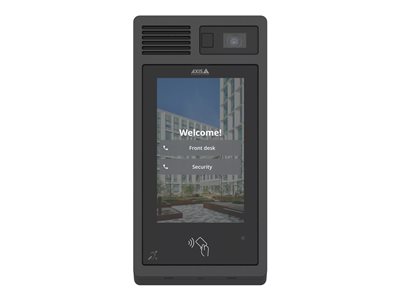

Axis I8307-VE - IP intercom station - with camera - wired - 10/100 Ethernet - black NCS S 9000-N

Price:

For pricing or to order this product:

Call our Sales Representatives

Mon-Fri 8am-6:30pm CST

E-Mail

Answer within 2 hours

Availability:

Ships within 1-2 days

Brand:

Axis Communications

MPN:

02784-001

Condition:

new

Returnable:

Yes

UPC:

331021083769

Add to Compare

Axis I8307-VE - IP intercom station - with camera - wired - 10/100 Ethernet - black NCS S 9000-N

General

Product Type:

IP intercom station - with camera

Environment:

Outdoor, indoor

Integrated Components:

Touch screen display, RFID reader, 2 microphones

Integrated Sensors:

Passive infrared motion sensor (PIR)

Power Source:

Placing / Mounting:

Wall-mounting

Connectivity Technology:

Wired - Ethernet, Fast Ethernet

Display:

Display Resolution:

800 x 480 pixels

Interfaces Details:

4 x alarm
2 x relay
Audio line-in/out
Serial (RS-485)

Features:

Axis Zipstream streaming video, vandal-resistant, two-way communication, echo cancellation, PoE, ONVIF support, SIP support, VAPIX support

Camera

Image Sensor:

8 Megapixel - Progressive Scan CMOS - 1/1.8"

Lens Aperture:

F/2.2

Focus Adjustment:

Fixed focus

Focal Length:

1.8 mm

Max Digital Video Resolution:

3840 x 2160

Video Modes:

Features:

150° field of view (horizontal), 0.04 lux minimum illumination, Forensic WDR, deep learning processing unit (DLPU), noise reduction, digital PTZ function

RAM

Installed Size:

4 GB

Flash Memory

Installed Size:

8 GB

Supported Flash Memory Cards:

microSDHC, microSD, microSDXC

Software

Type:

AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection

Miscellaneous

Included Accessories:

Terminal block connectors, owner authentication key

Product Material:

Aluminum, glass

Color:

Black NCS S 9000-N

Localization:

Australia, Europe, India, United Kingdom, United States

Encryption Algorithm:

FIPS 140-3 Level 3

Voltage Required:

DC 18 - 28 V

Warranty:

5-year warranty

Power Consumption Operational:

7 Watt

Compliant Standards:

IK08, IP66, IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP69, G.711 A-Law, AAC, G.711 U-Law, G.722, G.726, ADPCM, USGv6, IEEE 802.1x, IEEE 802.1ar, CSA, UL/cUL, KC, VCCI Class A, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 method B, NEMA 250 Type 4X, ETSI EN 303 645, EAL 6+, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3af, BFR-free, CFR free, PVC-free, JEDEC, ECA, REACH 1907/2006/CE, RoHS 2011/65/EU

Dimensions & Weight

Width:

5.7 in

Depth:

1.7 in

Height:

11.4 in

Weight:

4.56 lbs

Environmental Parameters

Min Operating Temperature:

-22 °F

Max Operating Temperature:

131 °F

Humidity Range Operating:

10 - 100% RH (condensing)

Robust display
The 7-inch display with a resolution of 800 x 480 pixels provides clarity and ease of use, allowing users to interact efficiently with the device.
High durability
Built to operate in extreme conditions from -30°C to 55°C, this intercom station is designed to withstand a wide range of environmental challenges.
Advanced communication
The two-way communication feature combined with echo cancellation allows for clear conversations, reducing background noise.
Enhanced security
The passive infrared motion sensor integrated into the device helps detect presence, adding an extra layer of security for any environment.
Efficient installation
Powered through Power over Ethernet (PoE), the I8307-VE simplifies installation by reducing the need for additional power sources while maintaining functionality.
